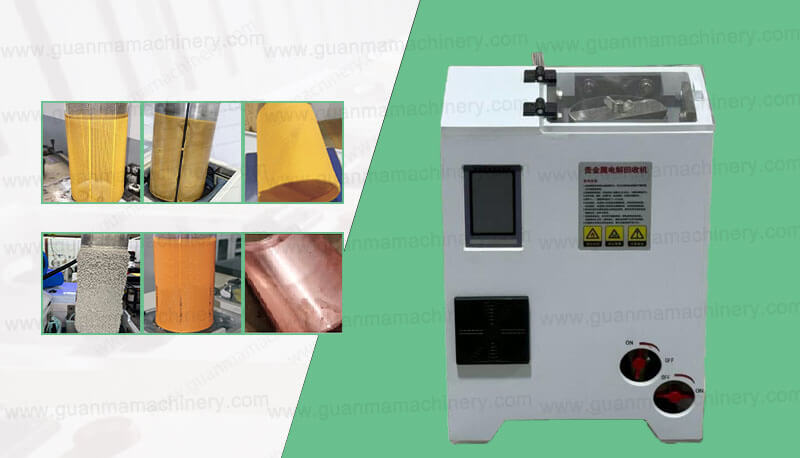

Gold Silver Copper Electrolysis Machine facilitates the recovery treatment of various gold, silver, and copper-containing solutions, achieving a precious metal purity of ≥99.6% and an extraction efficiency of precious metal ions at ≥99.9%.
Raw Materia
Guanma Machinery gold silver copper electrolytic machines sale can process various raw materials: copper ore, CPU, gold-plated circuit boards, waste circuit boards, etc.
Final Product
The final products of the gold silver copper electrolytic machine: electrolysis gold, electrolysis copper, electrolysis silver, etc.
Flow Chart
Gold Silver Copper Electrolysis Equipment Process
Through gold silver copper electrolysis equipment, the machine adsorbs gold, silver, copper, and other precious metal ions from the solution onto the cathode. Once the deposited metals reach a certain weight, they are mechanically removed from the cathode in the form of precious metal sheets.
Technical Parameter
Gold Silver Copper Electrolysis Machine Technical Parameters
Working voltage can be customized, and if you have other requrement and want to know more details, please contact us.(The data in this table are for reference only)
| Model | Capacity | Power | Rated Voltage | Size(Length*Width*Height) | Weight | Cathode Size |
|---|---|---|---|---|---|---|
| GM-101 | 1-3kg/day | 120W/h | 220V/50Hz | 710*650*450mm | 40kg | 159x310mm 219x365mm |
| GM-106 | 6-20kg/day | 720W/h | 220V/50Hz | 720*800*2400mm | 300kg | |
| GM-1010 | 20-50kg/day | 1200W/h | 380V/50Hz | 720*1600*2355mm | 450kg | |
| GM-1084 | 100-500kg/day | 10080W/h | 380V/50Hz | 6000*2300*2300mm | 3780kg | |
| GM-10108 | 600-1000kg/day | 12960W/h | 380V/50Hz | 11800*2300*2300mm | 5000kg | |
| This table is for reference only, the actual parameters are subject to the quotation | ||||||
Features
Low-Voltage Electrolysis Technology & Dual Extraction Structure: Ensures an efficient electrolysis area coverage of ≥90%.
Versatile Applications: Suitable for industries such as electroplating, photolithography, printed circuit boards (PCBs), digital printing, photovoltaics, and oxidized mining.
Environmental Protection: As a new type of eco-friendly device, it enables the recovery of precious metals from various solutions, transforming the ions into pure metallic states.
Advanced Structural Design: Integrated into reverse osmosis membrane reduction devices, this machine utilizes multi-stage operation control technology, mobile workshop configurations, and unconventional anode structures to create a closed-loop refining environment with stringent requirements for installation locations. It supports flexible and convenient precious metal extraction, including customizable structures for multiple multi-tank series operation based on wastewater volume needs.
Product Advantages
PLC Control: Equipped with smart touchscreen for easy operation and fully automated process flow.
High Purity of Precious Metals: Achieves a precious metal purity of ≥99.6%, with an ion purification rate of ≥99.9%.
Portability and Flexibility: Portable design allows for operation in outdoor environments without being restricted to fixed locations.
Customizable Solutions: Tailored design and processing capacity according to customer needs and site conditions.
Guanma Machinery offers gold silver copper electrolytic machine, praised for high efficiency, reliability, and eco-friendliness. Our machines ensure superior metal purity and recovery rates, supported by innovative technology and customizable solutions to meet diverse industry needs.
